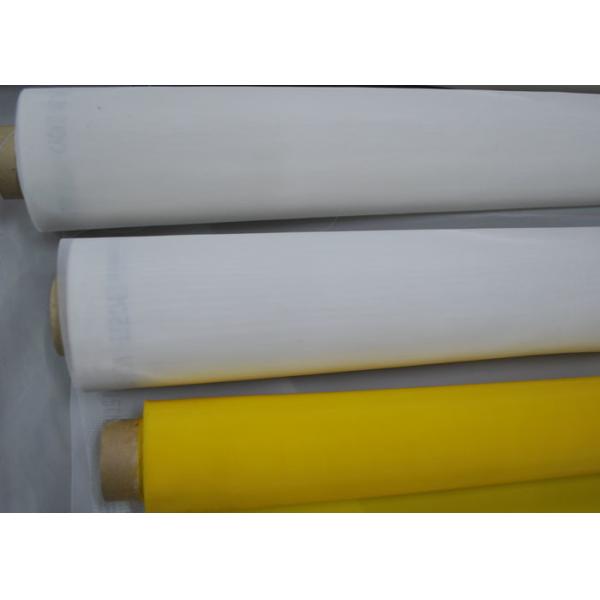

165T High Tensile Bolting Cloth 31μm, Monofilament Filter Cloth with Good Antistatic Properties
Product Specifications
| Product Name |
Yellow/White High Tension 165T Polyester Screen Printing Mesh for Electronics Printing |
| Thread Diameter |
31μm |
| Mesh per Inch |
420 |
| Application |
Electronics Printing Mesh |
| Width |
165cm |
| Key Feature |
Good antistatic properties |
Detailed Description
This high-quality polyester screen printing mesh is specifically designed for precision electronics printing applications. The 165T mesh count provides excellent detail reproduction while maintaining durability.
| Mesh Count per cm |
165 |
| Thread Diameter |
31μm |
| Color Options |
White / Yellow |
| Opening Size |
30 micron |
| Available Widths |
115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Maximum width: 3.65m) |
Applications
This polyester screen printing mesh is widely used in:
- Textile printing
- T-shirt printing
- Ceramic printing
- Glass printing
- PCB printing industry
Technical Specifications
Highlighted row shows specifications for this particular product
| COUNT (INCH) |
COUNT (CM) |
DIAMETER (UM) |
OPENING (UM) |
OPEN AREA(%) |
THICKNESS(UM) |
VOLUME (CM³/CM²) |
MAX TENSION(N/CM) |
| 420 |
165 |
31 |
30 |
24 |
46 |
11 |
21-23 |
Key Features
- High tension threshold and breaking point
- High modulus, low elongation monofilament polyester yarn
- Resistant to chemicals, abrasion, heat and moisture
- Minimal tension loss during stretching process
- Improved registration due to stable fabric tension
- Excellent antistatic properties
- No surface treatment required
Packaging
- Mesh rolls in PP bags
- 2-12 rolls per carton
- Waterproof outer bags
- Reinforced with package belts
Ordering Information
Minimum Order Quantity: Typically 30 meters (smaller quantities may be available - please contact us)
Samples: Free samples up to 2 meters available (buyer pays freight)
Recommended Mesh Sizes for Different Applications
- 20-40 mesh: Ideal for glitter inks requiring very open mesh
- 60 mesh: Best for smaller glitter and most shimmer inks
- 80 mesh: Excellent for thick ink layers and foil adhesive
- 110 mesh: Perfect for white and other thick inks
- 120 mesh: Most common size for general printing
- 155 mesh: Great for textile printing with basic detail
- 200 mesh: For detailed prints with thinner ink layers
- 230-305 mesh: High-end fine detail and halftone printing
Manufacturer Information
Anping County PFM Screen Co., Ltd is located in Anping County Industrial Park, known as the "home town of wire mesh". Our facility covers 40,000 square meters with 11,000 square meters of construction area, including a 1,500 square meter 10,000-grade clean production workshop.
We employ 163 staff including 56 engineering technicians, and operate 46 advanced production lines including Swiss 330cm P7100 gripper looms, German intelligent electronic sectional warping machines, automatic heat setting machines, and washing machines.
Customer Service
Pre-Sale Support:
- Inquiry and consulting support
- Sample testing
- Factory tours available
After-Sale Support:
- Prompt shipment tracking
- Product usage training
- Replacement guarantee for dissatisfaction
